Three points should be taken into consideration when selecting the steel cord conveyor belt

Generally, we use steel wire rope conveyor belt to carry out long-distance, high-speed and heavy-duty raw material transportation. If such facilities can not bear these weights, it will directly affect our operation progress, and it will also be a great damage to the conveyor belt itself. So when we choose the steel rope conveyor belt, we should pay attention to its material and later construction technology, so as to better ensure that the products we choose are more reliable in durability.

影响钢丝绳输送带价格的因素有很多,最根本的原因就是输送带的原材料,我们肯定都知道输送带主要是由橡胶和帆布来组成的,而钢丝绳输送带的骨架采用的是钢丝绳。

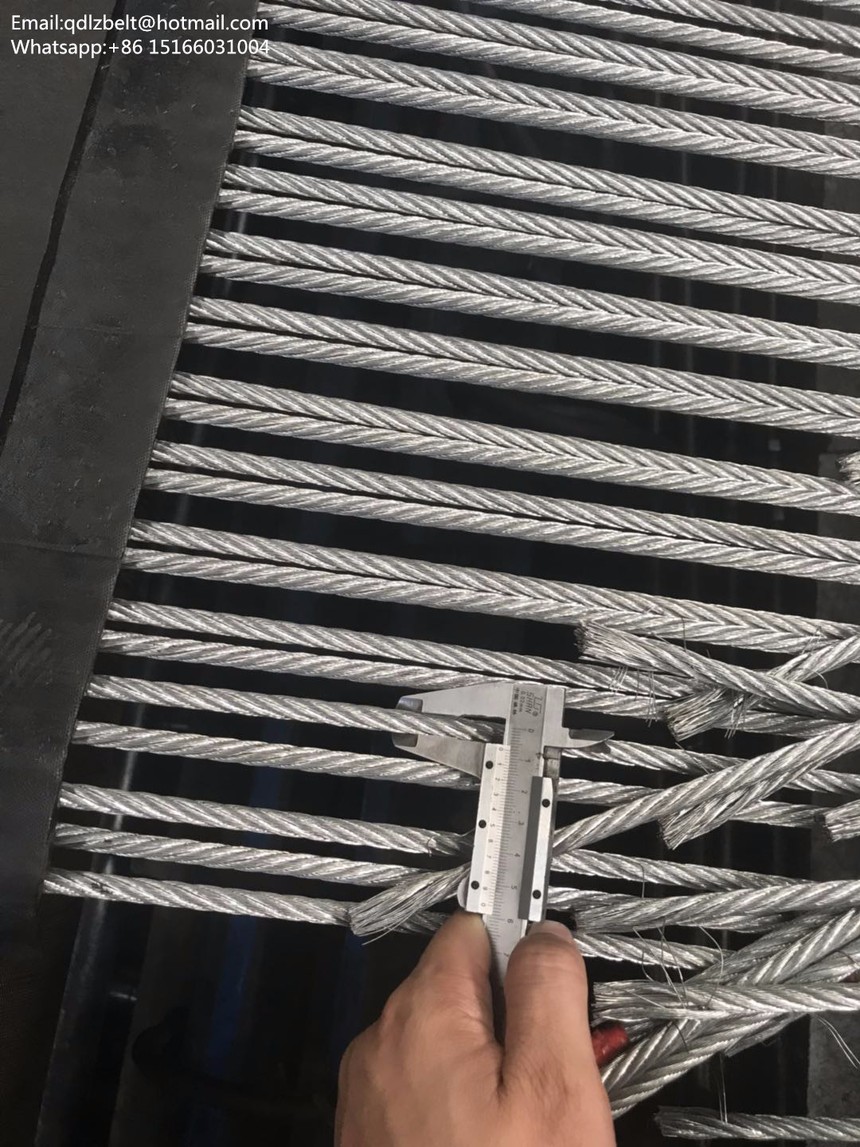

There are many factors that affect the price of steel wire rope conveyor belt. The most fundamental reason is the raw materials of the conveyor belt. We all know that the conveyor belt is mainly composed of rubber and canvas, and the steel wire rope is used as the skeleton of the steel wire rope conveyor belt.

在这两者中，橡胶要占据输送带的主要部分,由于近两年来橡胶的价格起伏不定,有时候高的离谱,造成输送带的价格浮动比较大。其次是,工人工资和管理费用。因为生产需要给工人发工资,我们还得管理输送带等等,这个方面的需求也会存在费用的存在。最后是从输送带本本身来看,输送带覆盖胶的厚度和布层的多少以及钢丝绳的选择也决定了输送带的价格。

In both of them, rubber should occupy the main part of the conveyor belt. Because the price of rubber has fluctuated in recent two years, sometimes it is too high, resulting in a relatively large price fluctuation of the conveyor belt. Secondly, workers' wages and administrative expenses. Because production needs to pay workers, we have to manage the conveyor belt and so on, and there will be costs in this aspect. Finally, from the perspective of the conveyor belt itself, the thickness of the rubber covered by the conveyor belt, the number of cloth layers and the selection of steel wire rope also determine the price of the conveyor belt.

输送机的选择对输送带的使用也很重要，输送机要求输送带自身质量小,抗拉强度和抗弯强度大,成槽性能好。由于承受交变弯曲载荷,故要求带芯夹层与橡胶层间要有较高的粘附强度,以防层间剥离和撕开。还要求加工精细,保证在受纯拉伸时,各夹层均匀承受载荷。优质橡胶输送带的覆盖胶和夹层带芯都应具有较高的抗冲击性能和抗机械损伤性能。为延长使用寿命,应使输送带具有足够的耐磨性。为使驱动时所需的初张力尽量小,故要求输送带具有高摩擦系数。输送带要有较好的外形稳定性,既无太大的纵向弹性伸长又具有较小的永久伸长,其张紧行程不超过带式输送机长度的1.5%。输送带端头连接要简单,但其接头处的强度不应显着减弱,并且接头处厚度必须与其它部位厚度相同。

The selection of conveyor is also very important for the use of conveyor belt. The conveyor belt is required to have small quality, high tensile strength and bending strength, and good trough forming performance. Due to the alternating bending load, it is required to have a high adhesion strength between the core sandwich and the rubber layer to prevent the interlayer from peeling and tearing. It also requires fine processing to ensure that the load of each interlayer is even when it is under pure tension. The covering rubber and sandwich belt core of high quality rubber conveyor belt should have high impact resistance and mechanical damage resistance. In order to prolong the service life, the conveyor belt should have enough wear resistance. In order to make the initial tension required for driving as small as possible, the conveyor belt is required to have high friction coefficient. The conveyor belt shall have good shape stability, neither too large longitudinal elastic elongation nor small permanent elongation, and its tension stroke shall not exceed 1.5% of the length of the belt conveyor. The end connection of conveyor belt shall be simple, but the strength at the joint shall not be significantly weakened, and the thickness at the joint shall be the same as that of other parts.
